Alunova Ceiling Frames

Strong frames for better ceilings.

A false ceiling is only as good as the frame behind it. Alunova makes strong, durable galvanised steel ceiling frames that give your false ceiling the support it needs — and help it stay straight, stable and long-lasting.

Built in India. Made for homes, offices and commercial spaces.

Explore Products Get a Quote on WhatsApp

Step 1 — Set the boundary

The edge goes up first

The perimeter channel and L angle are fixed along the walls to establish the ceiling level and support the edges.

Step 2 — Build the frame

The grid takes shape

Intermediate channels and ceiling sections are installed to create the supporting grid.

Step 3 — Fix the boards

A strong, level base

Gypsum boards are fixed to the frame using drywall screws, ready for your final ceiling finish.

A good ceiling starts with a good frame

The part you don't see holds it all together.

The frame may not be the part of the ceiling you see. But it is the part that holds everything together.

Alunova ceiling frames provide a strong and reliable base for gypsum false ceilings, helping create a clean finish that lasts.

Whether you're building a home, office, showroom, hotel or commercial space, Alunova gives your ceiling the support it needs.

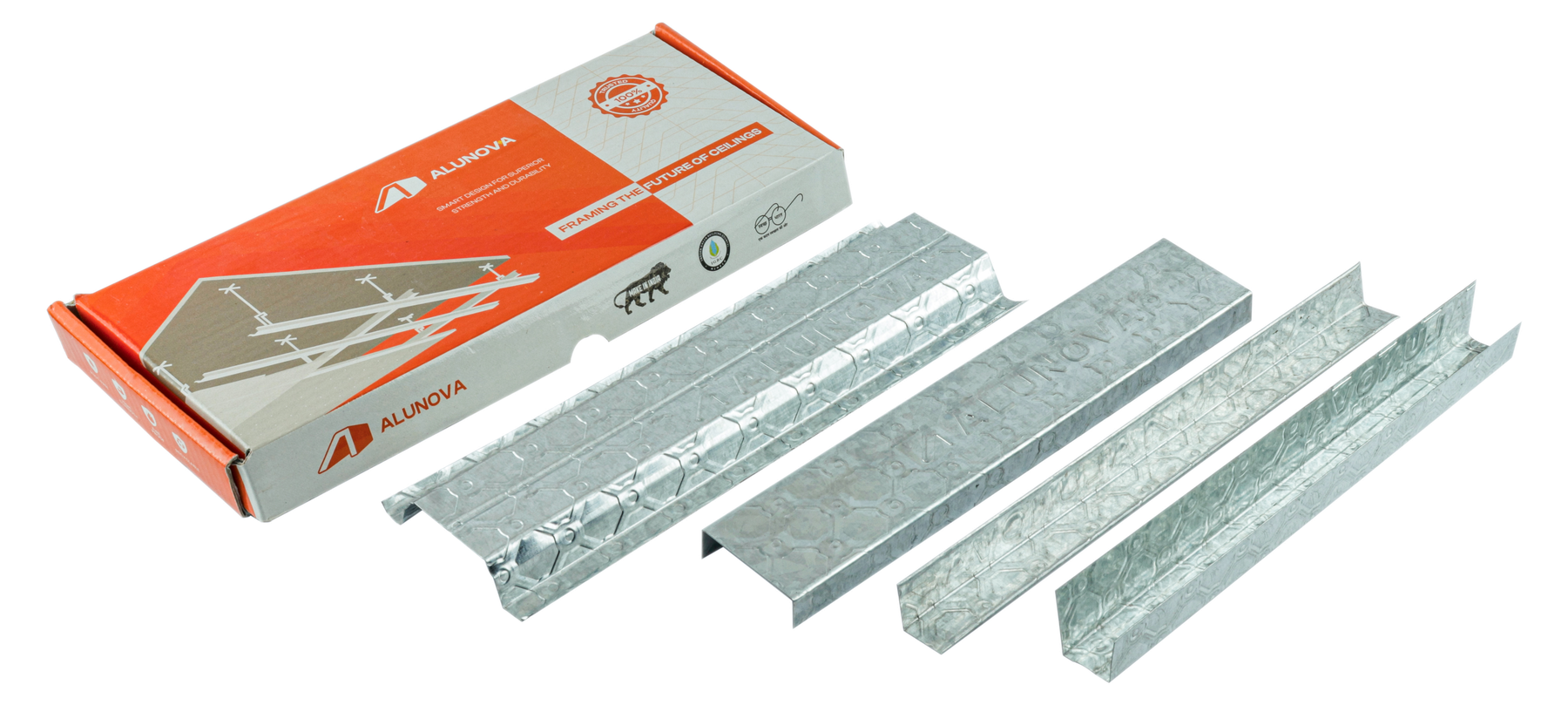

Alunova Perimeter Channel, Ceiling Section, Intermediate Channel and L Angle with retail packaging
4components in the system
0.35mm minimum thickness
3660mm standard length

Why choose Alunova?

Strong where it matters.

Our galvanised steel ceiling frames are designed to be:

  • Rust Resistant

    Made from galvanised steel to help protect against rust and corrosion.

  • Strong & Reliable

    Designed to support gypsum boards and ceiling fixtures securely.

  • Fire Resistant

    Steel does not burn, making it a suitable material for ceiling framing.

  • Termite Resistant

    Unlike wood, steel is not affected by termites.

  • Lightweight

    Easy to handle, transport and install on site.

  • Long Lasting

    Built to maintain its strength and shape for years.

  • Easy to Install

    Precisely manufactured for easier cutting, fitting and installation.

  • Consistent Quality

    Every piece is made to consistent specifications for a more reliable installation.

  • Weather Resistant

    Suitable for spaces exposed to humidity and changing temperatures.

  • Recyclable

    Steel can be recycled, making it a practical choice for more sustainable construction.

The Alunova system

Everything you need to build a strong ceiling frame.

The Alunova system consists of four essential components.

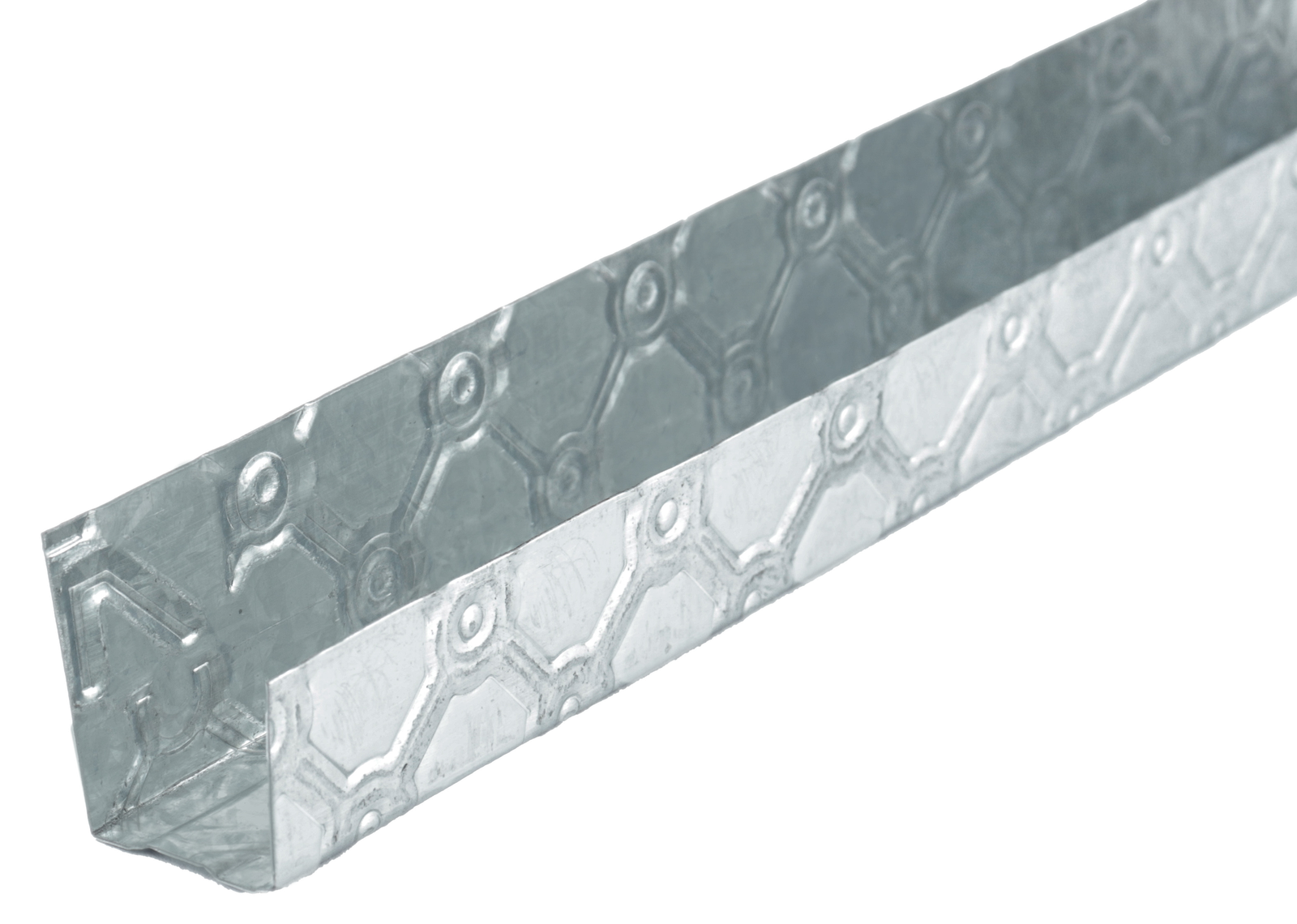

01 Alunova Perimeter Channel

Perimeter Channel

The perimeter channel runs along the walls and sets the outer edge of the ceiling frame.

Classic
0.35 mm
Prime
0.40 mm
Length
2440 mm & 3660 mm

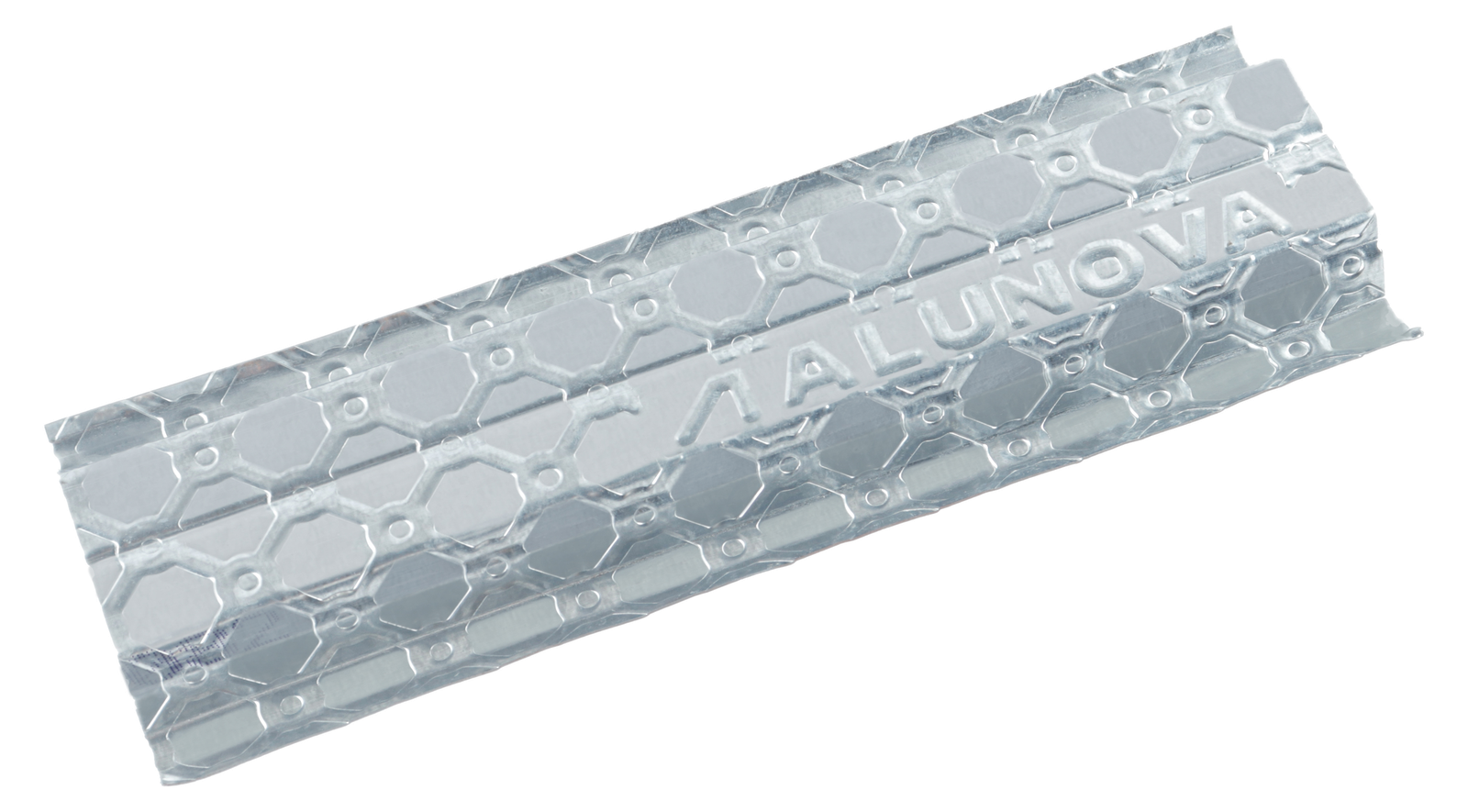

02 Alunova Ceiling Section

Ceiling Section

Supports the gypsum board and forms an important part of the ceiling grid. Its knurled surface helps provide a better grip when fixing screws.

Classic
0.35 mm
Prime
0.40 mm
Length
2440 mm & 3660 mm

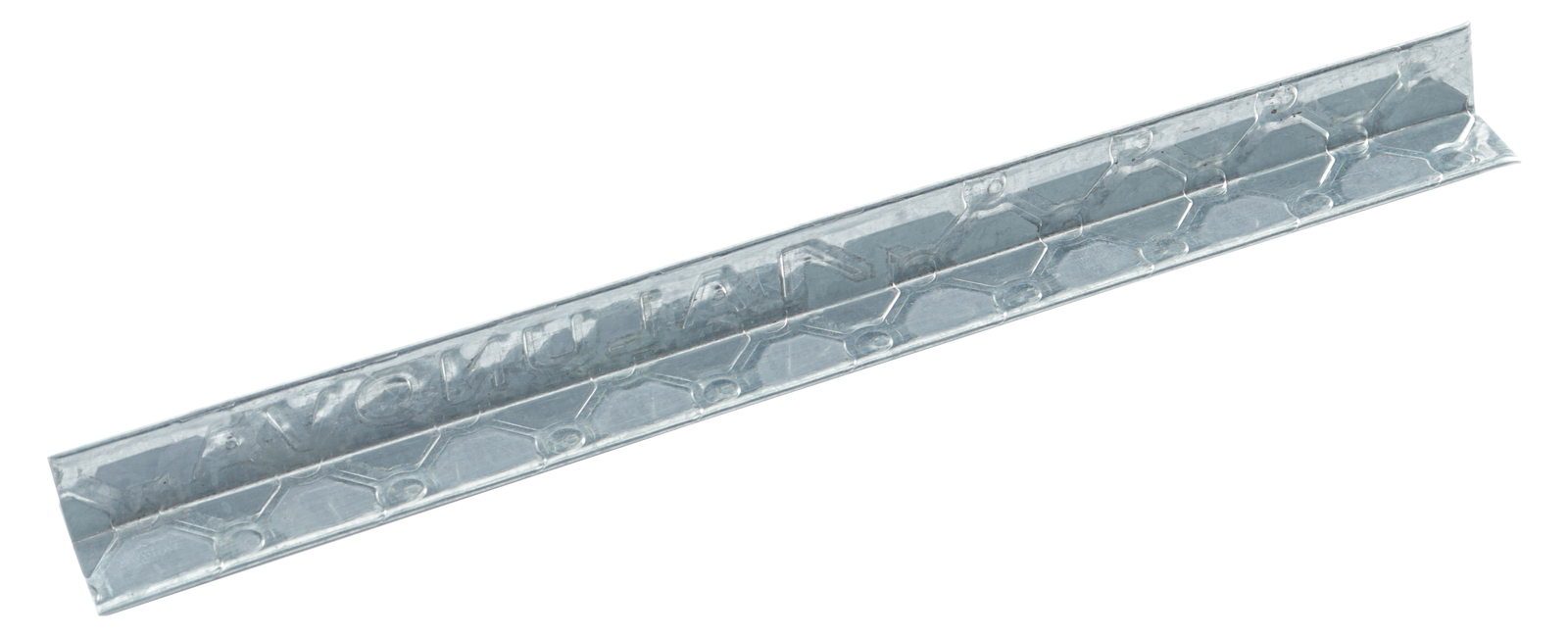

03 Alunova L Angle

L Angle

Used around the edges of the ceiling, the L angle provides additional support and helps create clean, sharp ceiling details.

Classic
0.35 mm
Prime
0.40 mm
Length
2440 mm & 3660 mm

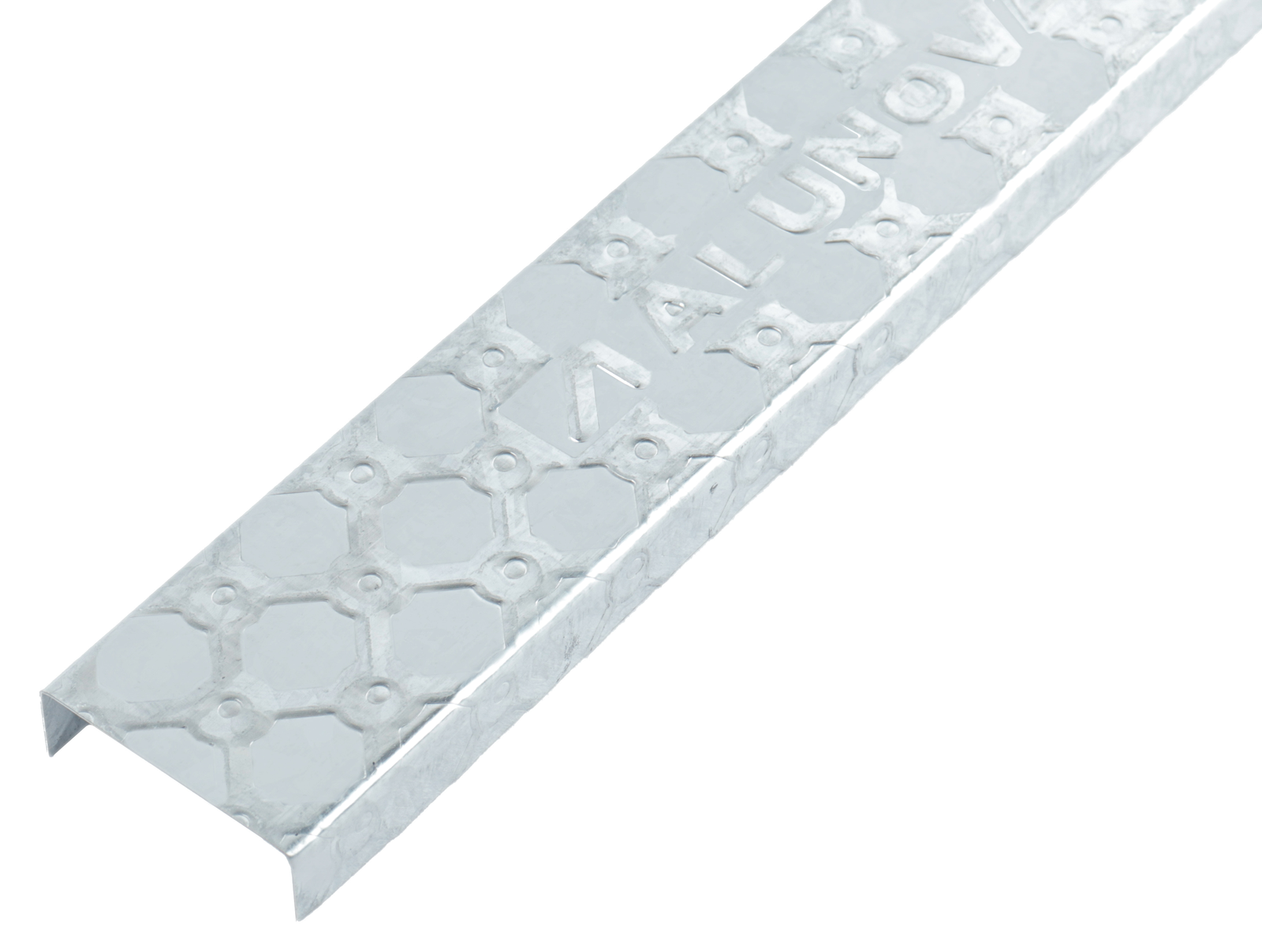

04 Alunova Intermediate Channel

Intermediate Channel

Forms the main support structure of the grid. It is available in heavier gauges for additional strength.

Classic
0.45 mm
Prime
0.50 mm
Length
2440 mm & 3660 mm

Need a different length?

Custom lengths can be supplied based on your project requirements. Send us your measurements and we'll help you work out what you need.

Ask for a Quote

Two ranges

One system, two gauges.

Every Alunova channel is made in two thicknesses, so you can match the frame to the project. Both ranges use the same four components and the same standard lengths.

Alunova Classic

The 0.35 mm range

Our standard gauge across the channels.

Alunova Classic specifications
ChannelProfile (mm)Thickness
Perimeter Channel20 × 17 × 270.35 mm
Ceiling Section16 × 74 × 160.35 mm
L Angle21 × 210.35 mm
Intermediate Channel14 × 45 × 140.45 mm

Alunova Prime

The 0.40 mm range

The heavier gauge across the channels.

Alunova Prime specifications
ChannelProfile (mm)Thickness
Perimeter Channel20 × 17 × 270.40 mm
Ceiling Section16 × 74 × 160.40 mm
L Angle21 × 210.40 mm
Intermediate Channel14 × 45 × 140.50 mm

Profile widths shown are the channel's web and flange dimensions in millimetres. All channels are supplied in 2440 mm & 3660 mm standard lengths.

Not sure which range suits your project, or need a different length?

Custom lengths can be supplied based on your project requirements. Send us your measurements and we'll help you decide and work out what you need.

Ask for a Quote

How does it work?

A simple system. A strong ceiling.

Made for different spaces

Alunova ceiling frames can be used in a wide range of projects.

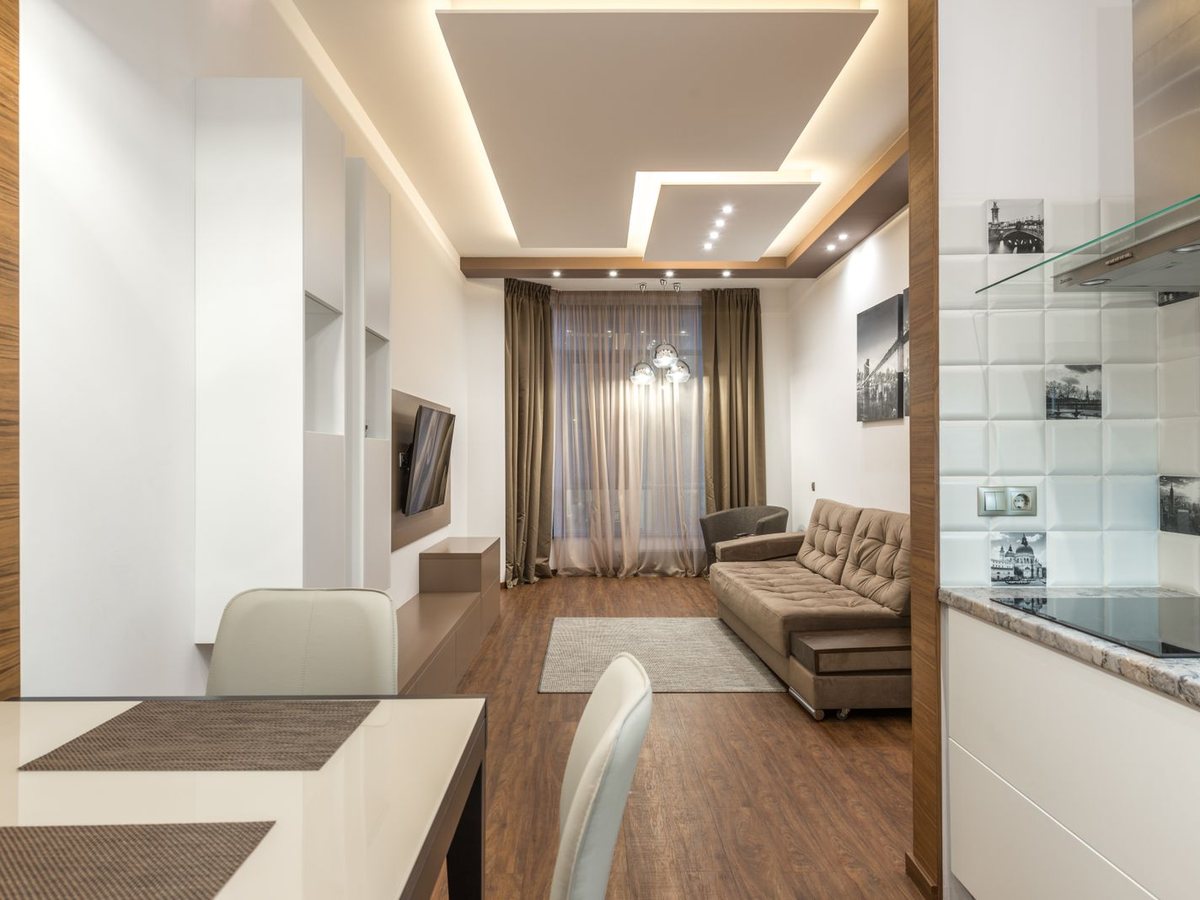

  • Living room with a finished false ceiling
    Homes & ApartmentsFor living rooms, bedrooms, kitchens and other residential spaces.

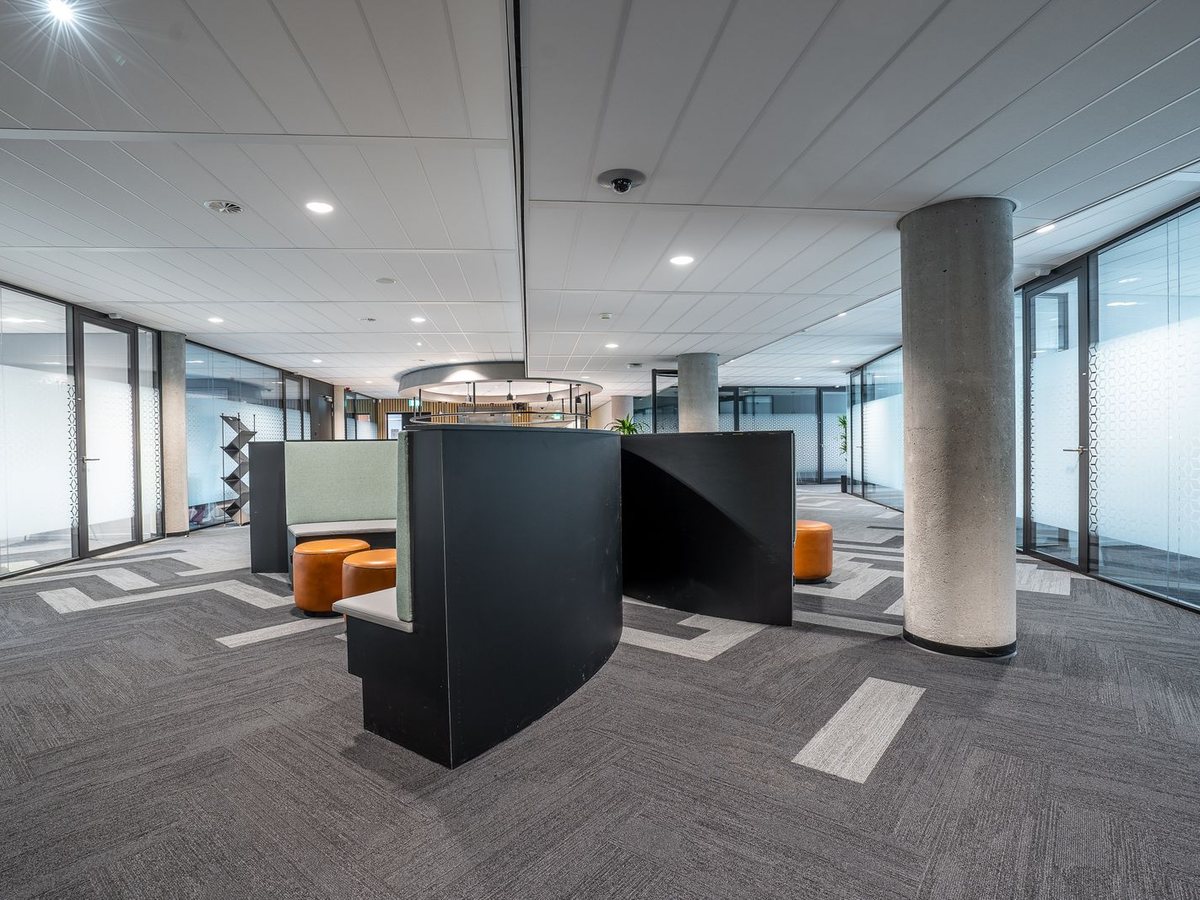

  • Modern office interior with a suspended ceiling
    OfficesFor workspaces, meeting rooms and commercial interiors.

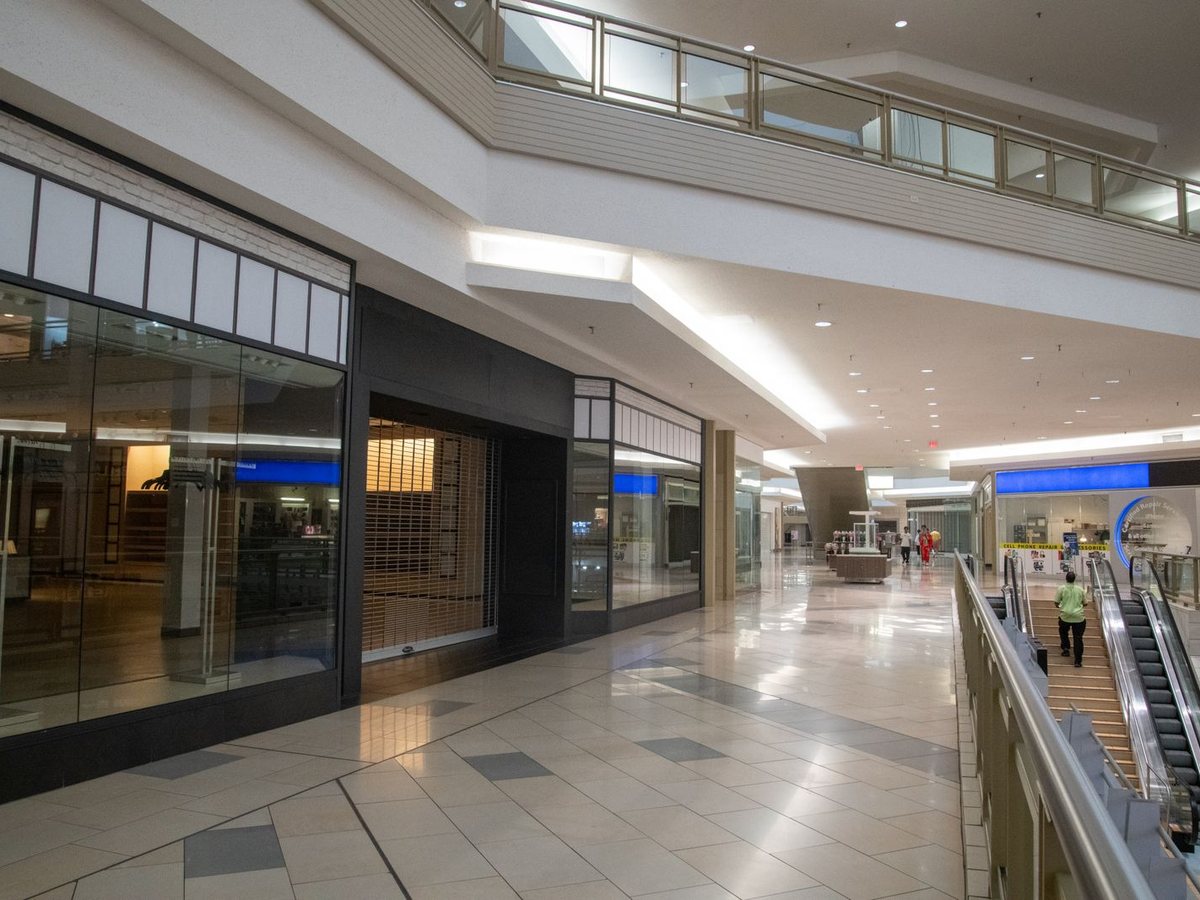

  • Retail showroom interior
    Retail ShowroomsFor shops and showrooms that need a clean, finished ceiling.

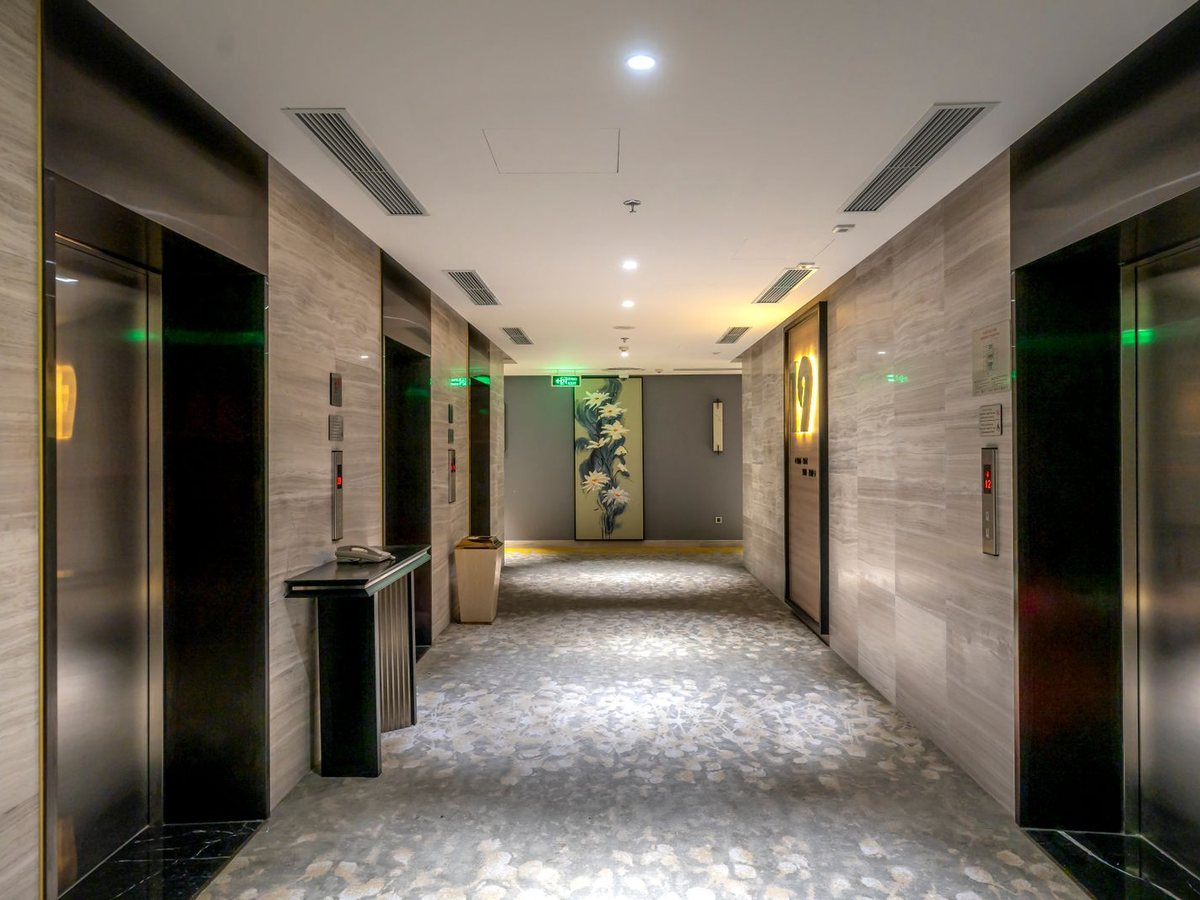

  • Hotel corridor with a finished ceiling
    Hotels & HospitalityFor hotels, restaurants and other hospitality spaces.

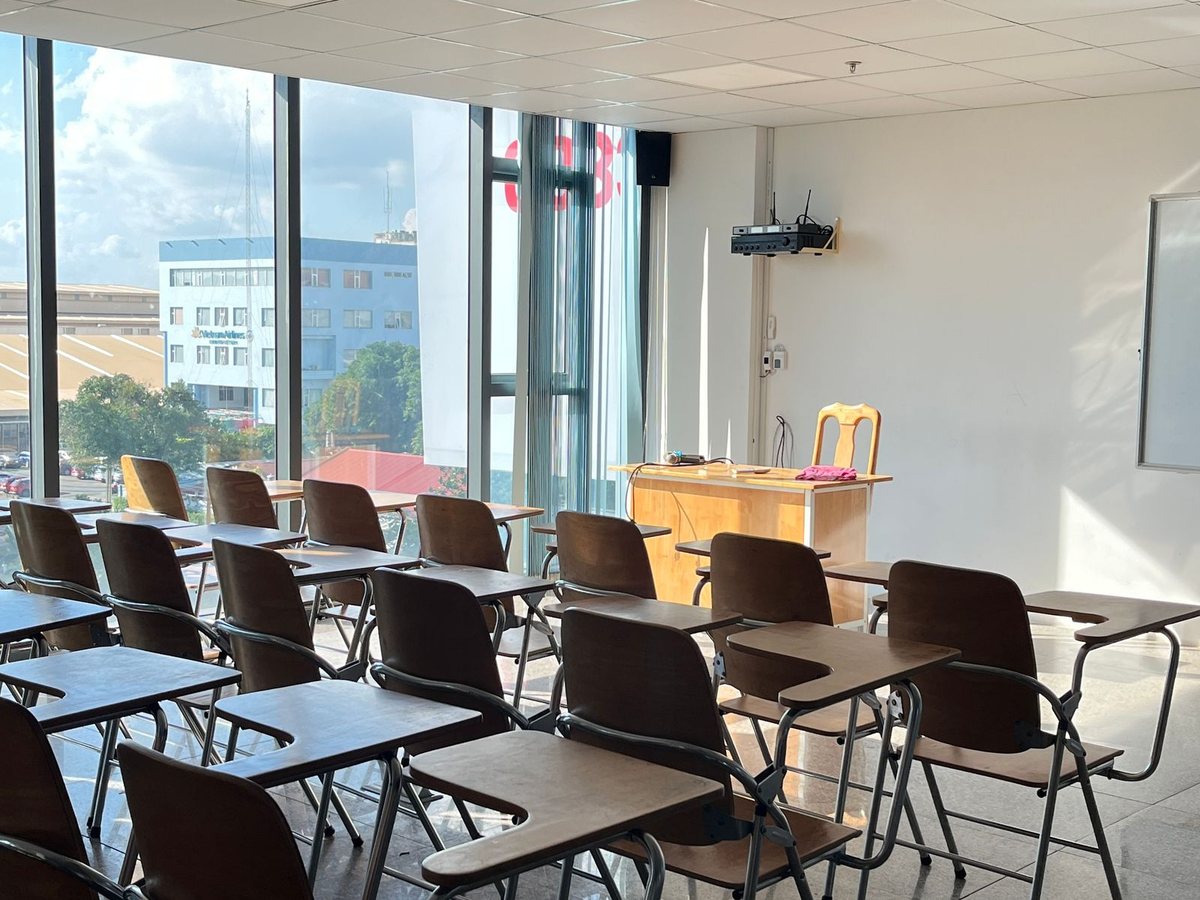

  • Classroom interior
    Educational InstitutionsFor schools, colleges and other learning spaces.

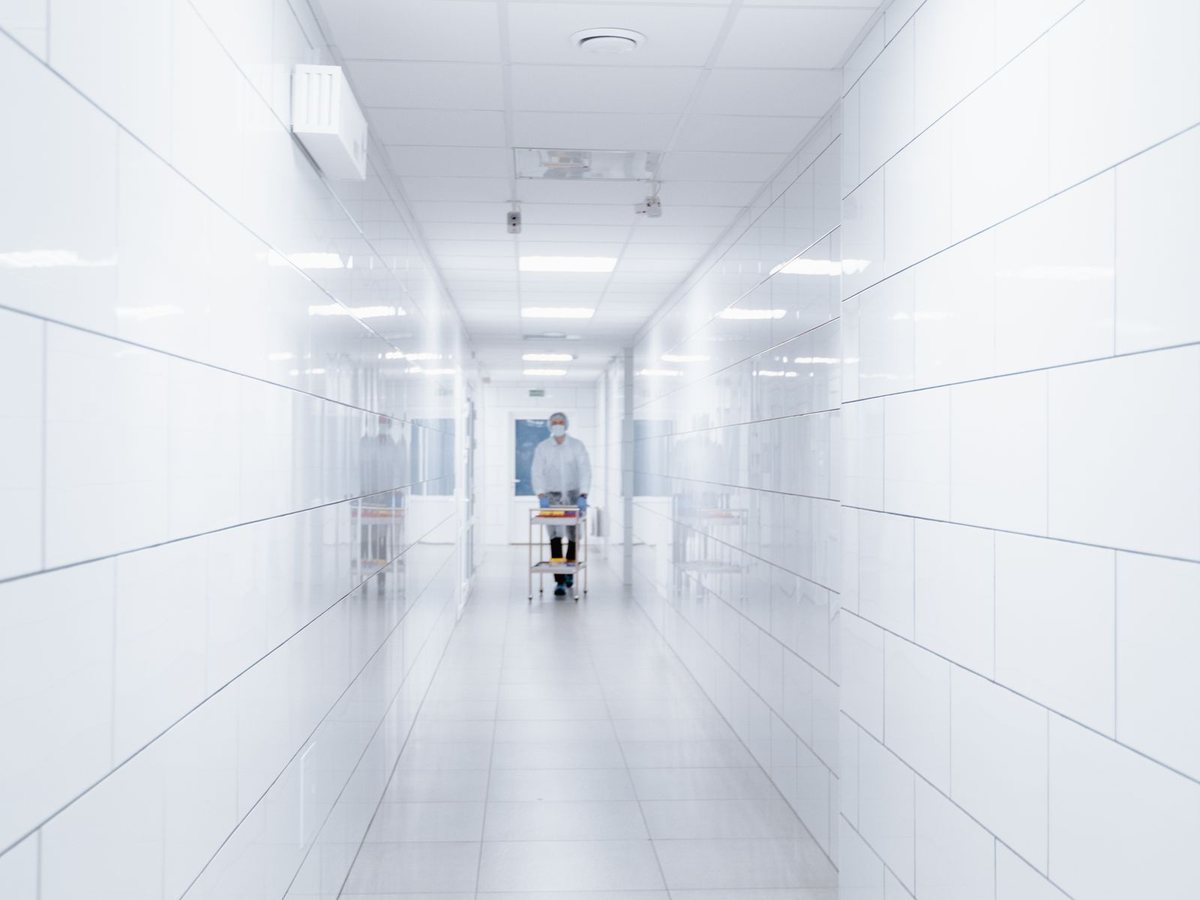

  • Hospital corridor with a suspended ceiling
    Healthcare FacilitiesFor hospitals, clinics and healthcare environments.

Made for the people who build

Simpler framing, on every project.

Whether you're working on a single home or a large commercial project, Alunova is designed to make ceiling framing simpler and more reliable.

  • Homeowners
  • Contractors
  • Interior Designers
  • Architects
  • Builders
  • Project Developers

Questions?

We've got the answers.

Anything else — send us a message on WhatsApp.

What does the Alunova system include?

The system includes four components: Perimeter Channel, Ceiling Section, L Angle and Intermediate Channel.

What thicknesses are available?

Perimeter, Ceiling Section and L Angle are available in 0.35 mm and 0.40 mm.

Intermediate Channel is available in 0.45 mm and 0.50 mm.

What lengths are available?

Standard lengths are 2440 mm and 3660 mm.

Custom lengths can also be supplied based on your requirements.

Where can Alunova frames be used?

They can be used in homes, offices, retail spaces, hotels, educational institutions, healthcare facilities and other interior projects.

Can I get a custom size?

Yes. Tell us the sizes and quantities you need and we'll help you with the requirement.

How do I get a quote?

Simply send us your requirements, measurements or even a photo of your ceiling drawing. We'll get back to you with the details.

Have a ceiling project?

Tell us what you're building.

You don't need to figure out every component yourself. Send us:

  • Your ceiling drawing
  • Required sizes
  • Quantities
  • Project details

Or simply send us a photo of your drawing on WhatsApp. We'll help you work out the right Alunova products for your project.
